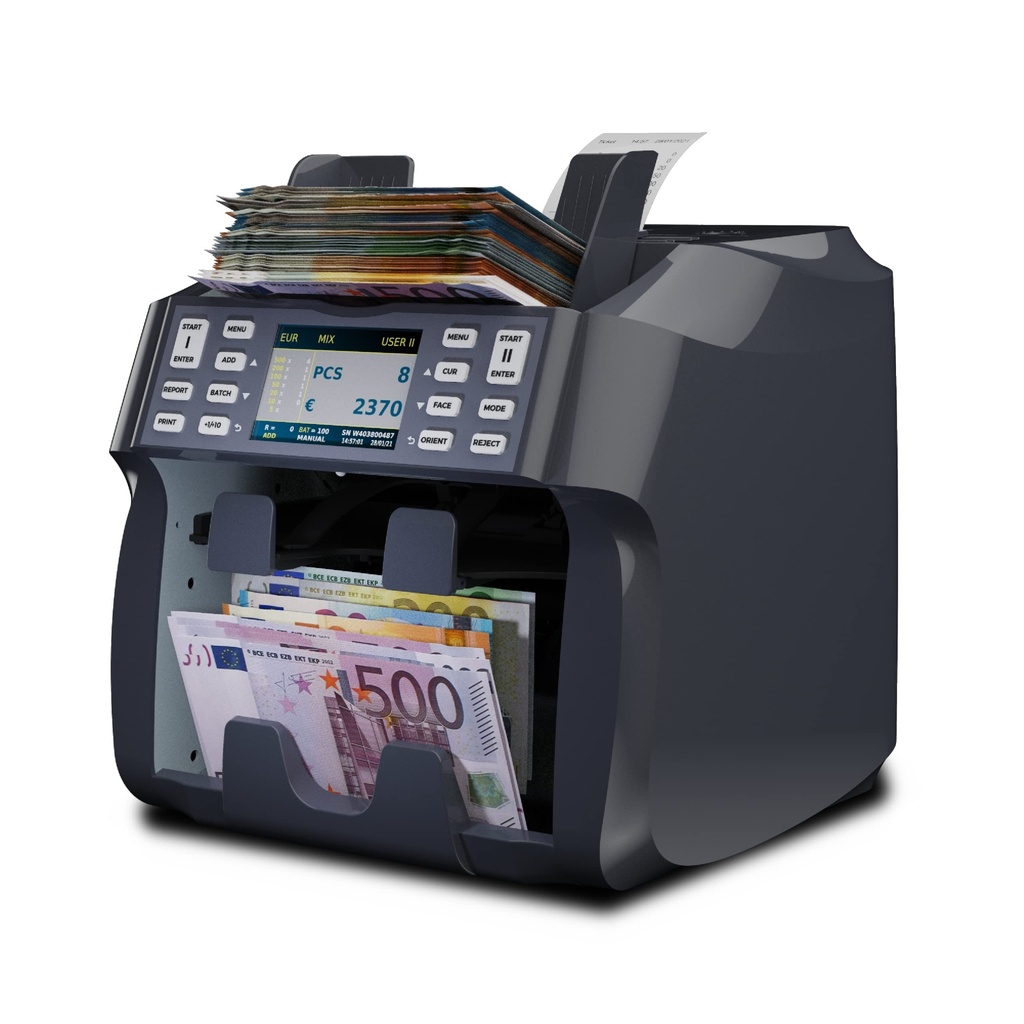

Banknote value counter and sorter
The V800 banknote value counter and sorter is the ultimate solution for counting, validating, classifying, facing, and orienting banknotes easily and effectively. It can even scan other documents, such as stubs, offering mixed banknote counting of various currencies and 100% detection.
Its hopper holds up to 500 banknotes and processes up to 1,200 banknotes per minute. The dual tray system allows for the separation of counterfeit or damaged banknotes without interrupting the counting process.
Additionally, it features an integrated thermal printer to generate detailed operation reports.
FREE SHIPPING AND RETURNS
4-YEAR WARRANTY
Key Features:
- Counting speed of 1200 notes / minute
- Large hopper with capacity for 500 notes
- Integrated thermal ticket printer
- Supports 5 currencies
- Counts classified banknotes for all currencies
- Counts unsorted banknotes for EUR, GBP, USD, CHF, MAD
- 100% tested www.ecb.int
- Professional grade detection
- Double tray: reject tray of 50 notes and exit tray of 200 notes
- CIS detection technology
- Adjustable counting speed: 800, 1,000 and 1,200 notes per minute
- Automatic currency and denomination recognition
- Supports serial number scanning (EUR, GBP and USD)
- Prepared for the new and old banknotes of the compatible currencies
- Counting modes: mixed one currency, mixed several currencies at the same time, sort, face, orient, unit count and document scanner
- Multi-currency mixing: counts different currencies in a mix, without needing to sort by currency beforehand
- BAT value: counts banknotes in bundles of a preset value
- Orient and place the banknotes in their two trays
- Unit counting option: free counting without counterfeit detection
- Sum and bundle function
- Two-operator function with individual preset values
- Automatic and manual start functions
- Easy-to-use front panel for left- and right-handed users
- 3.2 ”TFT color touch screen
- Updates via USB port or SD card slot
- PC software for counting
- Power supply: AC 110V-240V
- Consumo eléctrico: < 60W
- Dimensions: 28 x 28 x 29 cm
- Weight: 10 kg
DOUBLE TRAY
The Detectalia V800 has a double output for notes that will allow you to separate them. By default, counterfeit or damaged notes will be deposited in the top output so the device will not stop, as is the case with the devices with one output, such as the V75 or V100.
THE MOST RELIABLE DETECTION, CIS
In addition to the usual types of detection such as ultraviolet ink, infrared ink, magnetic ink, metal thread, image, size and thickness, this device incorporates the latest technology in processing bank notes, CIS (Contact Image Sensor) detection.
IN-BUILT PRINTER
It has an in-built thermal printer at the top of the counter to be able to print the results easily and quickly, you can even print the serial numbers.
IT ASSESSES, DETECTS COUNTERFEIT OR DAMAGED NOTES, FACES, ORIENTATES AND MORE
Obtain the value of banknotes, even counting various currencies at the same time (EUR+USD+GBP), detect counterfeit or damaged notes, face or orientate notes, detect the series number, scan other types of documents and much more with the Detectalia V800.
INTERFACE IN MULTIPLE LANGUAGES
The V800 is preloaded with Spanish, English, French, German and Italian.
MAINTENANCE WARNING
When it requires maintenance, the Detectalia V800 will notify you on screen. Cleaning the hopper, top, two outputs and rear of the device is easy, you will not need to remove any screws, all of the parts involved in the process open and can be removed easily.
Does it detect all € currency bills?
Yes, it does not require updates for € currency. It detects old €5, €10, €20, €50, €100, €200, and €500 bills, the new €5, €10, €20, and €50 bills currently in circulation, and it is factory-compatible with the new €100 and €200 bills to be issued.
Does it need programming when the new €100 and €200 bills are released?
No, this model is factory-compatible with both.
If it doesn’t need updates, why is it updatable?
The European Central Bank will not issue new €500 bills or any other € denominations, but other countries may release new currencies. In such cases, the supported currencies can be updated for free.
Can it be updated?
Yes, via USB and microSD ports. Updates for this model are free for life.
Is it reliable?
Yes, you can visit the official European Central Bank website here and search for "Detectalia" to see the results of the bill validator or verifier.
Is it compatible with the US dollar?
Yes, it can count and detect USD bills.
How does a counterfeit bill detector work?
Counterfeit bill detectors perform various tests at high speed. The analyses include:
- Watermark verification
- Bill infrared profile
- Magnetic property checks
- Security thread verification
- Hologram inspection
- Paper size verification
- Paper thickness verification
All our detectors perform these 7 checks.
What is a BAM device?
These are bill detection and counting machines suitable for use in banking institutions. Our Detectalia V800 banknote counter for banks has been successfully tested (www.ecb.inb) by the European Central Bank and the Bank of Spain.
Find the banknote counter to suit you.
Accepted currencies | Todas | EUR, GBP, USD, CAD, MXN | EUR+GBP+USD+CHF+MAD |
Weight | 4 kg. | 6 kg. | 10 kg. |
Level of detection | 100% | 100% | 100% www.ecb.int |
Screen | Two-tone LCD | color TFT | color TFT
|
Sound alarm | Yes | Yes | Yes |
Optical alarm | Yes | Yes | Yes |
Updates port | USB |
USB | USB, SD |
Dimensions |
27 x 21 x 24 cm |
27 x 23 x 28 cm | 28 x 28 x 29 cm |
Speed | 900 notes / min | 900 notes / min | 1200 notes / min |
CIS sensor |
No |
No | Yes |
Accepts mixed notes |
No | Yes | Yes |
Adding and batch function
| Yes | Yes | Yes |
Additional tray for rejects | No | No | Yes |
Faces | No | No | Yes |
Orientates | No | No | Yes |
Interface for multiple users | No | No | Yes |
Designed for left-handed and right-handed users | Yes | No | Yes |
Recognition of serial number | No | Yes | Yes |
Printing of results | No | Optional with PT2 printer | Yes, in-built printer |
Free counting software for PC | No | Yes | Yes |
Document scanner | No | No | Yes |
Types of detection | 4 | 7 | 7 |
Multilingual interface |
No |
No | Yes |
